I2C Integration Guide*

The main control chip/host acts as an I2C Master device and can perform the following operations by reading and writing to specified addresses and registers:

Read events
Reset
Get version number
Test link

GX8002 provides two I2C Slave devices: 0x2F and 0x36, both devices share the same SCL and SDA pins on the bus.

Device Address	Register (8-bit data)	Description	Operation
0x2F	0xA0, 0xA4, 0xA8, 0xAC	Data registers used to store events, status, parameters, and other data	Read/Write
	0xC4	Interrupt register; writing non-zero data to this register will trigger an interrupt in GX8002	Write
	0xB0	Reset register; writing 1 to this register will reset GX8002 (this reset will not clear some I2C0's own registers). If only B0 is written with 01, in some cases, the reset will fail. The complete procedure should be: I2C address 2F, register 9C write A5; D0 write 5A; CC write 04; B0 write 01, which can achieve a reset in any situation	Write
0x36	None	Firmware download channel	Write

GX8002 follows the standard 7-bit address I2C operation mode:

Write

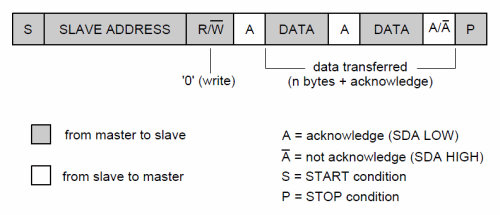

7-bit-address-writing

Read

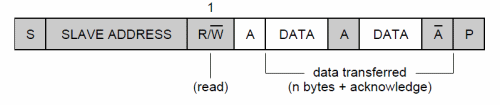

7-bit-address-reading

Write / Read with repeated start

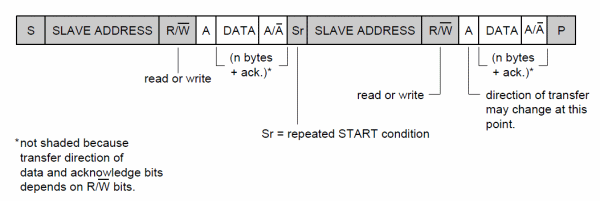

7-bit-address-writing-reading

For slave devices with registers, Write mode must be used to send the register address to specify the register to operate. For reading operations, after sending the register address, switch to Read mode using the repeated start signal.

1. Device Address*

Using a 7-bit address, the address is: 0x2F.

For reading data, the read/write bit is 0, so 7-bit address + read/write bit 0 becomes 0x5E.

For writing data, the read/write bit is 1, so 7-bit address + read/write bit 1 becomes 0x5F.

2. Read Events*

2.1 Read Events*

Read the specified register 0xA0 of device 0x2F to get the event.
Write Confirm information to interrupt register 0xC4 to clear the event after reading.
If events are not read in time, new events will overwrite old ones.
In specific applications, polling or responding to external GPIO interrupts can be used to read events.

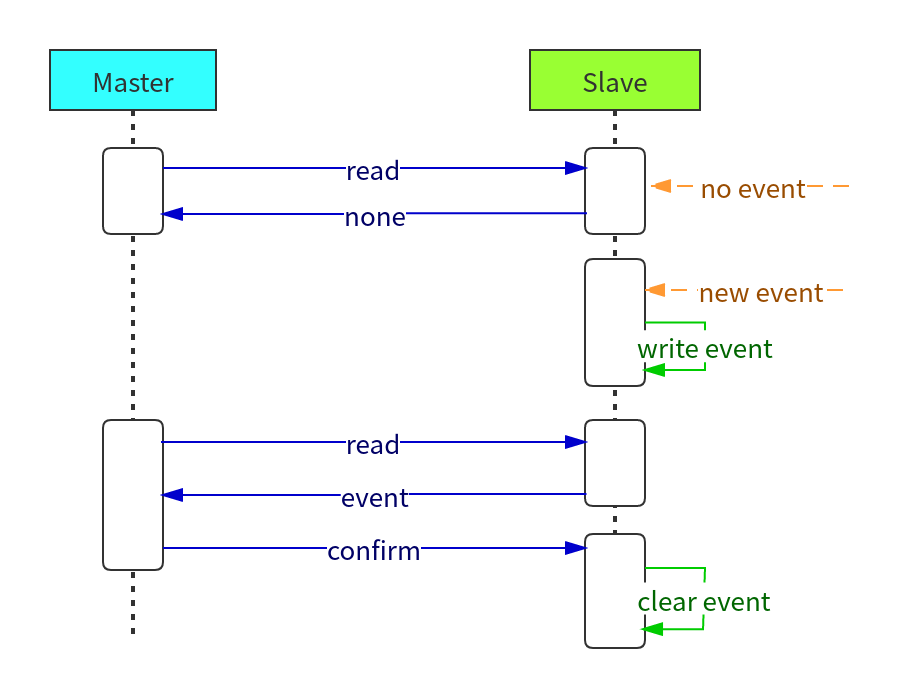

event

2.2 Voice Events*

GX8002 generates voice events when it detects wake-up words or short commands.

Register: 0xA0
Confirm: 0x10
Event ID (Same as GX8002 Short Command ID):

ID	Event
100	Main wake-up word
102	Pause playback
103	Stop playback
104	Play music
105	Increase volume
106	Decrease volume
112	Play previous track
113	Play next track
114	Answer call
115	Hang up call

Note

The ID values above may vary depending on the specific firmware and need to be confirmed with the corresponding engineer.

2.3 Code Example*

void gx8002_read_voice_event(void)
{
    unsigned char event_id = 0;

    // read voice event: addr = 0x2f, reg = 0xa0
    // Read only one byte
    i2c_rx_reg(0x2f, 0xa0, &event_id, 1); // Platform-specific I2C interface, pseudo code provided here
    if(event_id > 0)
    {
        unsigned char confirm = 0x10;
        // confirm: addr = 0x2f, reg = 0xc4, value = 0x10
        // Clear the event, write only one byte
        i2c_tx_reg(0x2f, 0xc4, &confirm, 1); // Platform-specific I2C interface, pseudo code provided here
        printf("I get voice event ID = %d\n", event_id);
    }
}

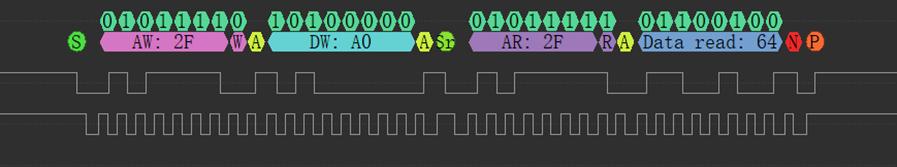

2.4 Waveform Example*

The event read here is 0x64, which is 100 in decimal.

3. Reset*

3.1 Reset*

Writing 1 to register 0xB0 of device 0x2F will reset GX8002.

The complete procedure should be: I2C address 2F, register 9C write A5; D0 write 5A; CC write 04; B0 write 01, which can achieve a reset.

Note

If it is an OTA process, be sure to use the hardware reset method. This reset method is a software reset and can only be used when the software function is normal. Considering that there may be exceptions during the OTA process, resulting in the device becoming a "brick," it will need to be re-upgraded, and only a hardware reset can be used in such a situation.

3.2 Code Example*

void gx8002_reset(void)
{
    unsigned char val = 1;

    i2c_tx_reg(0x2f, 0x9c, &val, 0xa5);
    i2c_tx_reg(0x2f, 0xd0, &val, 0x5a);
    i2c_tx_reg(0x2f, 0xcc, &val, 0x04);

    // reset: addr = 0x2f, reg = 0xb0, value = 1
    i2c_tx_reg(0x2f, 0xb0, &val, 0x01);
}

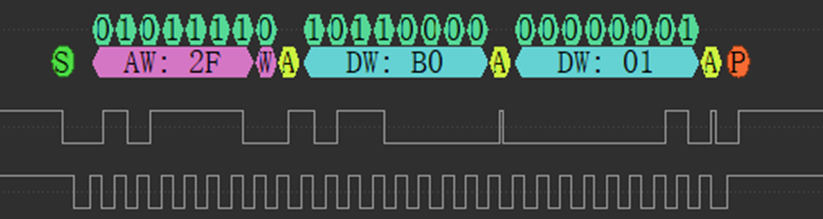

3.3 Waveform Example*

4. Get Version Number*

4.1 Get Version Number*

Write 0x68 to the interrupt register 0xC4 of device 0x2F, then read

registers 0xA0, 0xA4, 0xA8, and 0xAC in sequence to get the version number.

For example, the obtained data may be: 0x01, 0x02, 0x03, 0x4, corresponding to version V1.2.3.4.

4.2 Code Example*

void gx8002_get_version(void)
{
    unsigned char val = 1;
    unsigned char version[4] = {0, 0, 0, 0};
    char reg = 0xa0;

    i2c_tx_reg(0x2f, 0xc4, &val, 0x68);
    //Increase the delay appropriately, as 8002 takes time to write registers after receiving instructions. If the register is read immediately, there is a high probability that the correct value will not be read
    mdaly(200);
    for(int i = 0; i < 4; ++i){
        i2c_rx_reg(0x2f, reg, &ver, 1);
        version[i] = ver;
        reg += 4;
    }
}

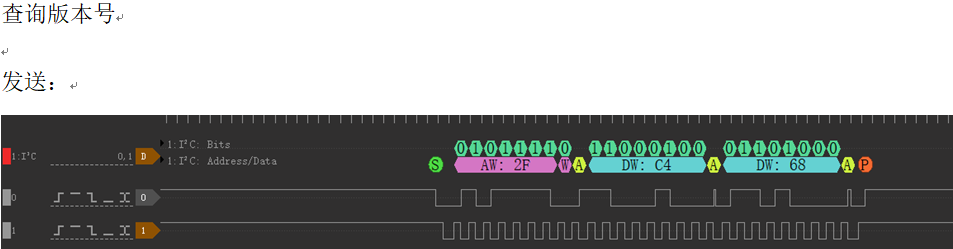

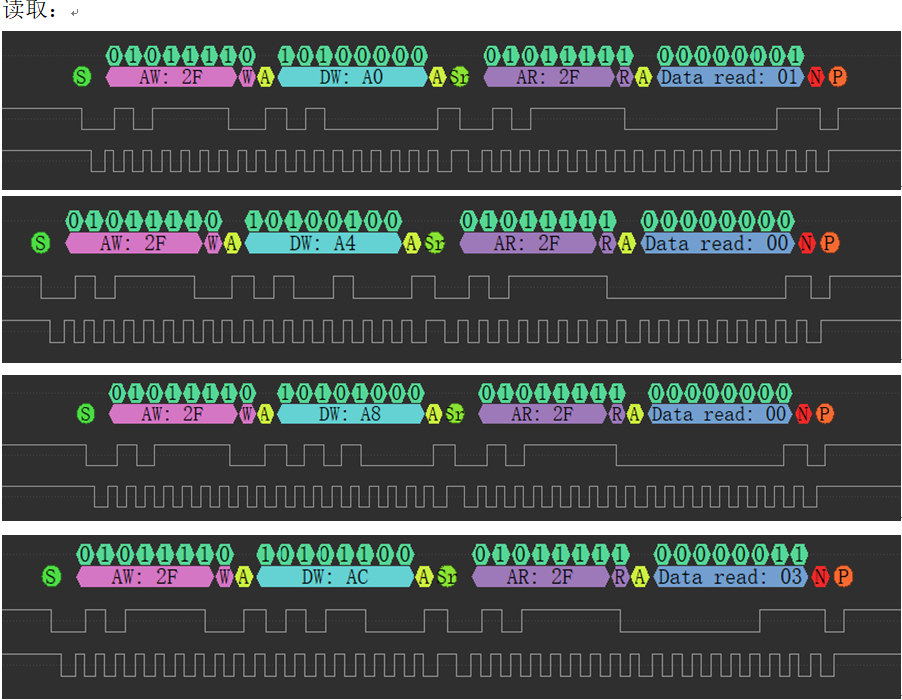

4.3 Waveform Example*

5. Get Microphone Status*

5.1 Get Microphone Status*

Write 0x70 to the interrupt register 0xC4 of device 0x2F, then read

registers 0xA0 in sequence to get the microphone status.

0xA0 status:

code value	illustrate
0	abnormal
1	normal

5.2 Code Example*

void gx8002_get_mic_state(void)
{
    unsigned char val = 1;
    int mic_state = 0;
    unsigned char reg = 0xa0;

    i2c_tx_reg(0x2f,0xc4,&val,0x70);
    //ncrease the delay appropriately, as 8002 takes time to write registers after receiving instructions. If the register is read immediately, there is a high probability that the correct value will not be read
    mdaly(200);
    i2c_rx_reg(0x2f, reg, &ver, 1);
    mic_state = ver;
}

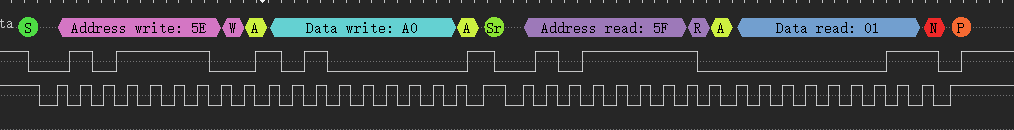

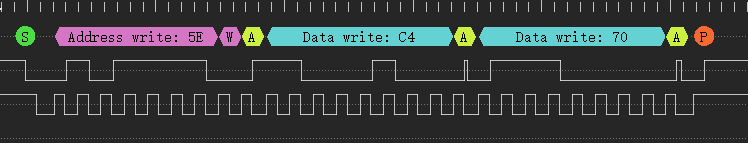

5.3 Waveform Example*

6. Test Link*

6.1 Test Link*

Write 0x80 to the interrupt register 0xC4 of device 0x2F to trigger the GX8002 test link interrupt.
Read register 0xAC, and if it is 1, the test is successful.
After the successful test, write confirmation information 0x11 to the interrupt register 0xC4.

6.2 Code Example*

int gx8002_test_link(void)
{
    unsigned char i2c_irq;
    unsigned char val = 0;
    int tick_cnt = 100;

    i2c_irq = 0x80;
    i2c_tx_reg(0x2f, 0xc4, &i2c_irq, 1);

    while(tick_cnt--) {
        gx_os_sleep(10);
        i2c_rx_reg(0x2f, 0xac, &val, 1);
        if(val == 1) {
            i2c_irq = 0x11;
            i2c_tx_reg(0x2f, 0xc4, &i2c_irq, 1);
            printf("i2c link ok !\n");
            break;
        }
    }

    return val;
}

7. open and close Dmic function*

7.1 open and close Dmic function*

Write '0x72' to the interrupt register '0xC4' of the '0x2F' device to open Dmic, and read the status code of register '0xA0'. Is it '0x72'

Write '0x73' to the interrupt register '0xC4' of the '0x2F' device to open Dmic, and read the status code of register '0xA0'. Is it '0x73'

7.2 Code Example*

int gx8002_open_dmic(void)
{
    unsigned char i2c_open_dmic_irq = 0x72;
    unsigned char val = 0;
    int tick_cnt = 100;

    i2c_tx_reg(0x2f, 0xc4, &i2c_open_dmic_irq, 1);

    while(tick_cnt--) {
        gx_os_sleep(10);
        i2c_rx_reg(0x2f, 0xa0, &val, 1);
        if(val == i2c_open_dmic_irq) {
            printf("open dmic ok !\n");
            break;
        }
    }

    return 0;
}

int gx8002_close_dmic(void)
{
    unsigned char i2c_close_dmic_irq = 0x73;
    unsigned char val = 0;
    int tick_cnt = 100;

    i2c_tx_reg(0x2f, 0xc4, &i2c_close_dmic_irq, 1);

    while(tick_cnt--) {
        gx_os_sleep(10);
        i2c_rx_reg(0x2f, 0xa0, &val, 1);
        if(val == i2c_close_dmic_irq) {
            printf("close dmic ok !\n");
            break;
        }
    }

    return 0;
}

8. Integration Considerations*

Ensure that the device address is correct. Our address is 7 bits, 0x2F. Customers need to provide the correct address based on their platform's I2C interface. Some platform driver interfaces require 8 bits (manually append the read/write bit), while others require 7 bits and the driver will automatically append the read/write bit.
For I2C communication, make sure to interact with GX8002 after it has been powered up and stabilized. Generally, wait for 1-2 seconds after GX8002 is powered up before performing interactions.
During testing, ensure that the GX8002 firmware supports the I2C communication protocol. If not, please communicate with the engineer to obtain the appropriate firmware. Also, ensure that GX8002 is running normally during the testing process. Connect to the GX8002 serial port and check if the Gx8002 firmware supports I2C and is working properly through printing. It is recommended to use our development board for early debugging to avoid hardware and firmware mismatches that may cause debugging issues.
If the device address is correct and both the hardware and firmware are correct, but communication is still not successful, refer to the provided waveform example to measure the waveform at the SOC's I2C end and compare it with our example. If they are inconsistent, confirm whether the driver is used correctly or there is peripheral hardware interference. If everything is correct and still not working, measure the I2C on the GX8002 end to see if the waveform matches the example. If it does not match, confirm whether there is peripheral hardware interference. Because debugging with the development board was successful in the previous steps, GX8002 software issues can be ruled out at this stage.
